Error Complex Type

Description

Details of validation check failure.

Namespace

http://www.ros.ie/schemas/paye-employers/v1/returns_reconciliation/

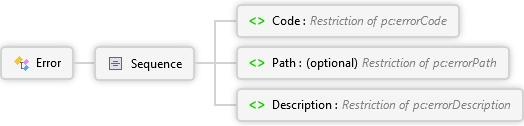

Diagram

Overview

Error

Details of validation check failure.

Sequence

Code errorCode Simple Type

Technical Error Code - to be used for mapping to error messages.

Path optional errorPath Simple Type

Path to error in schema, if available.

Description errorDescription Simple Type

Technical description of error.

Used By

ValidationError Element

Source

<xs:complexType name="Error" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:annotation>
    <xs:documentation>Details of validation check failure.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="Code" type="pc:errorCode">
      <xs:annotation>
        <xs:documentation>Technical Error Code - to be used for mapping to error messages.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="Path" type="pc:errorPath" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Path to error in schema, if available.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="Description" type="pc:errorDescription">
      <xs:annotation>
        <xs:documentation>Technical description of error.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
